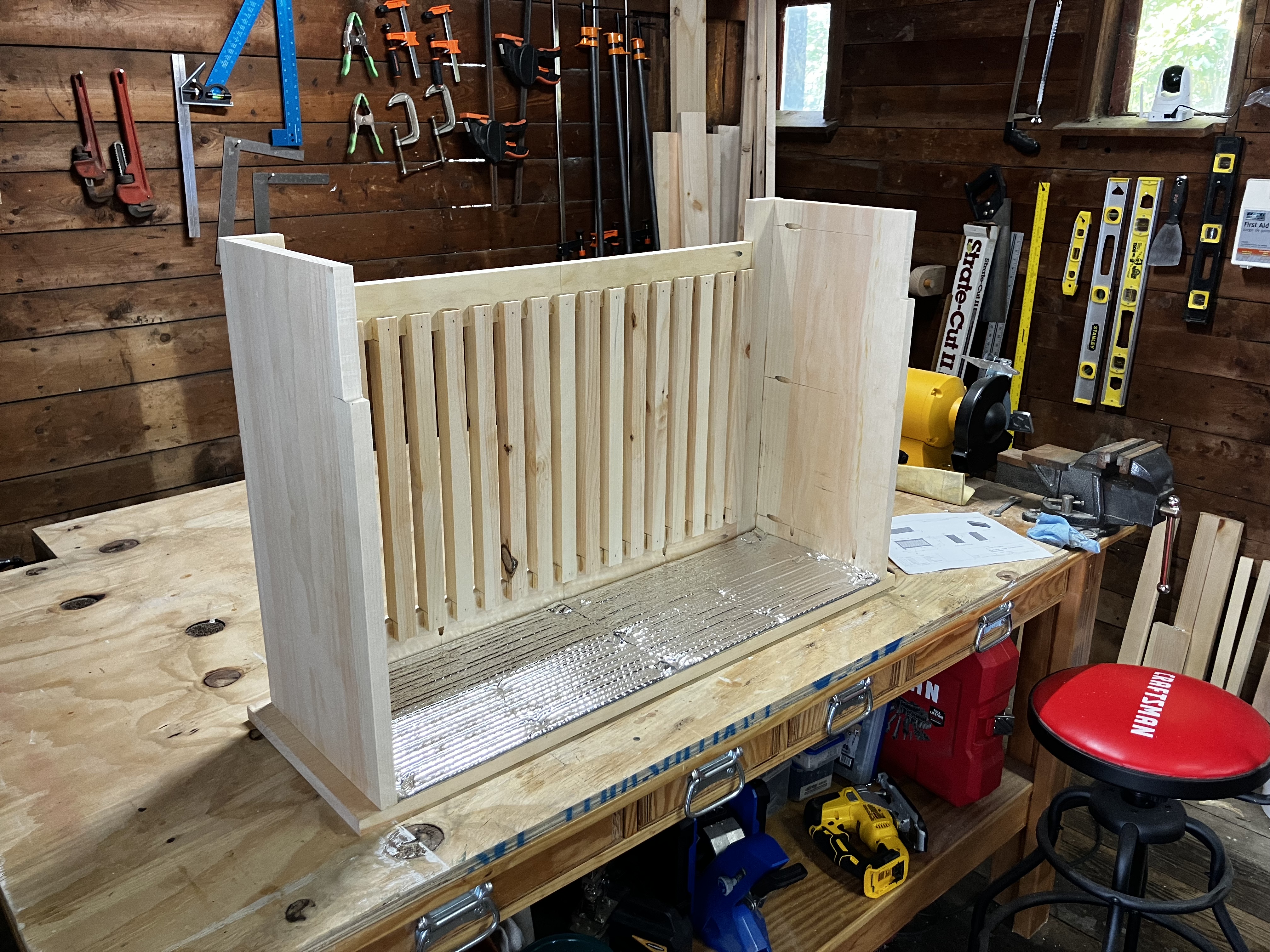

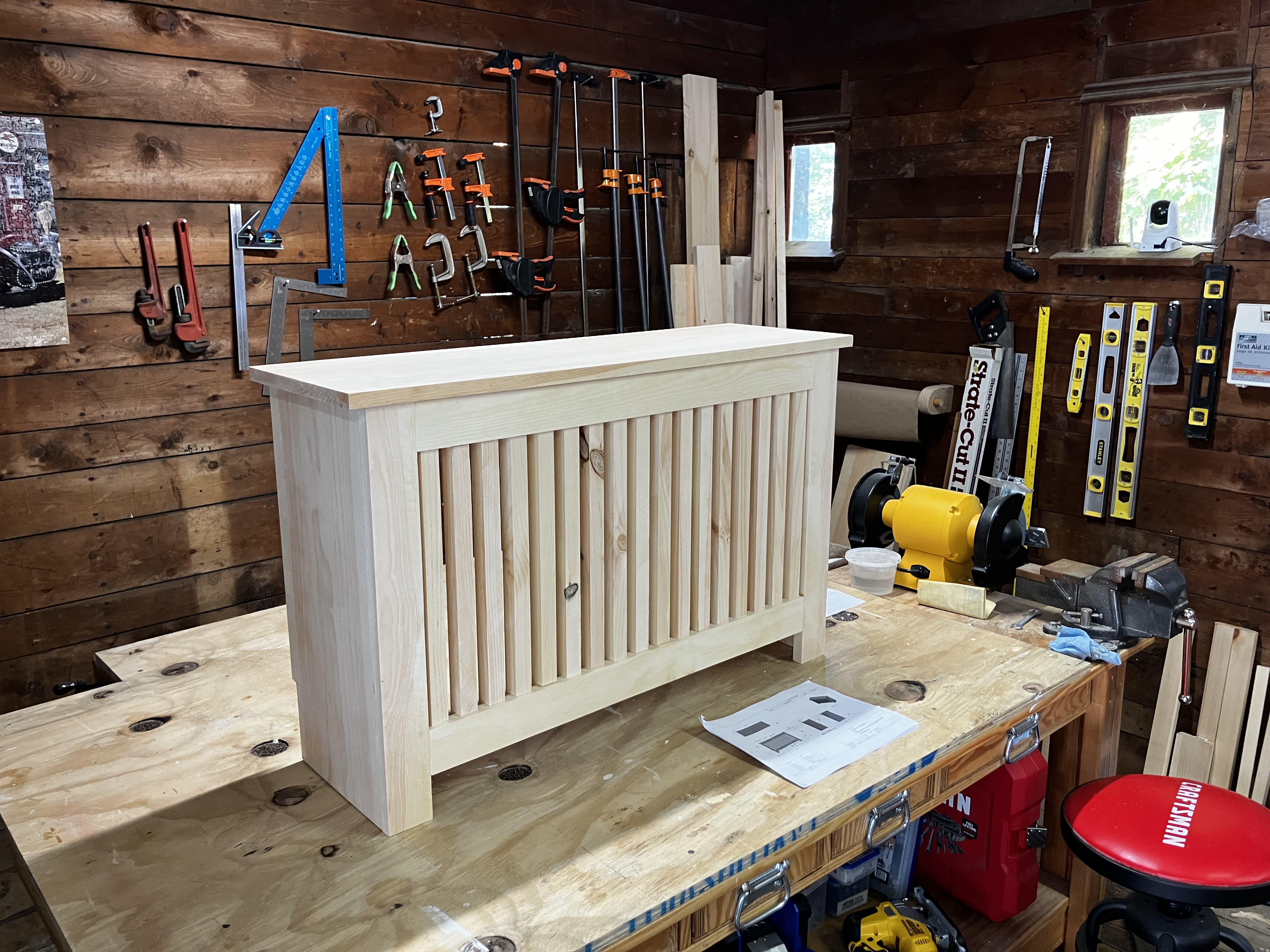

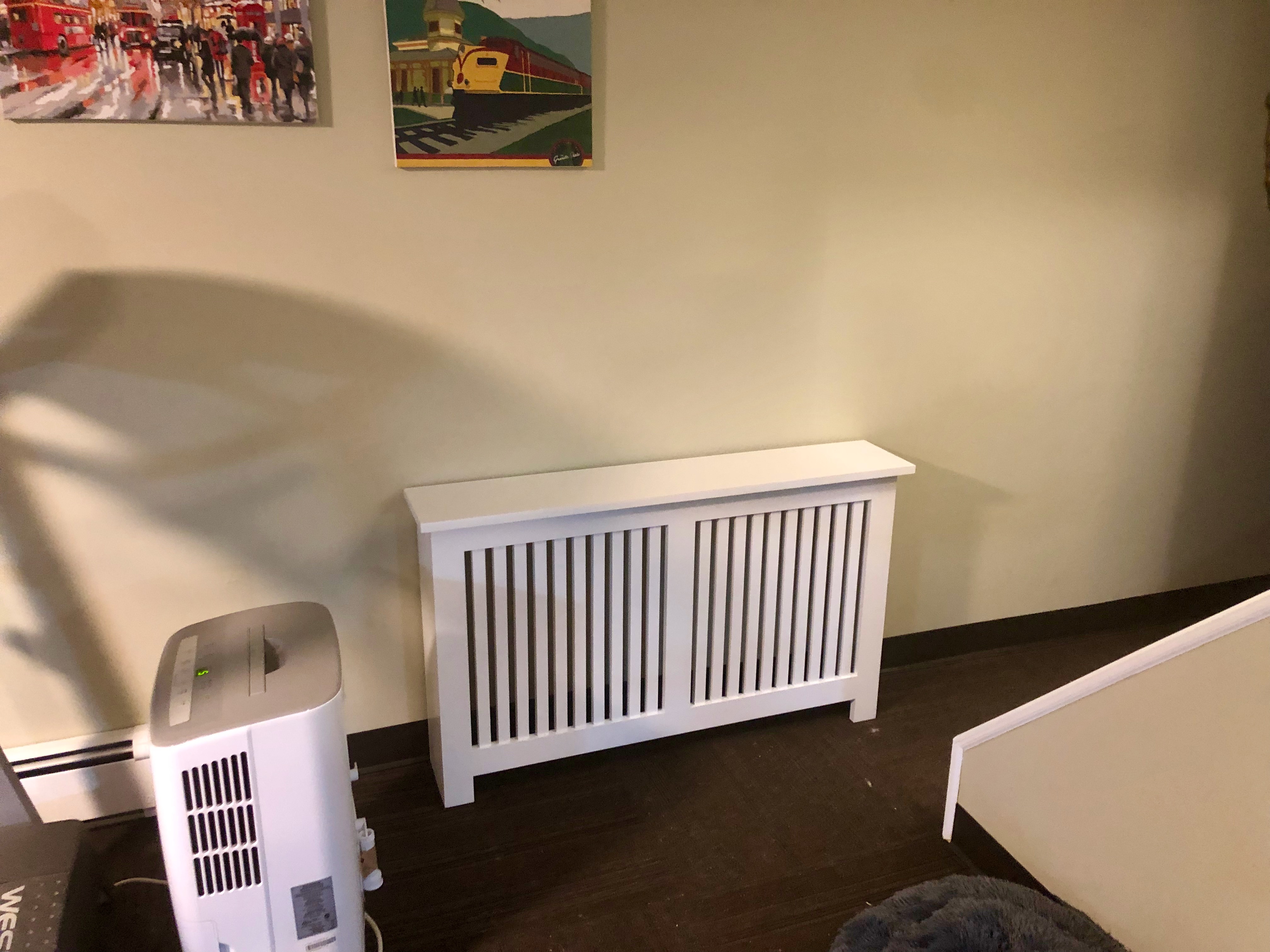

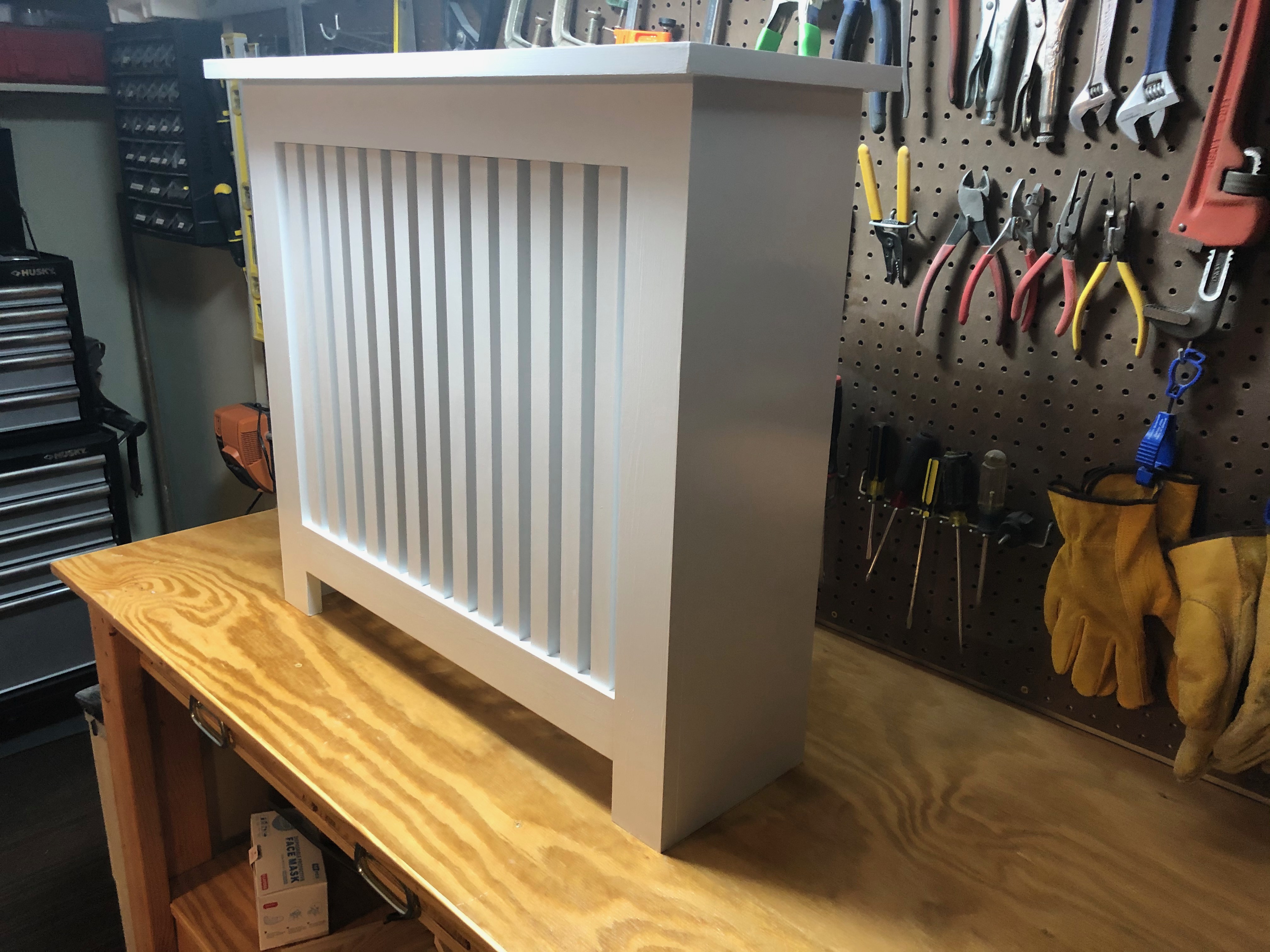

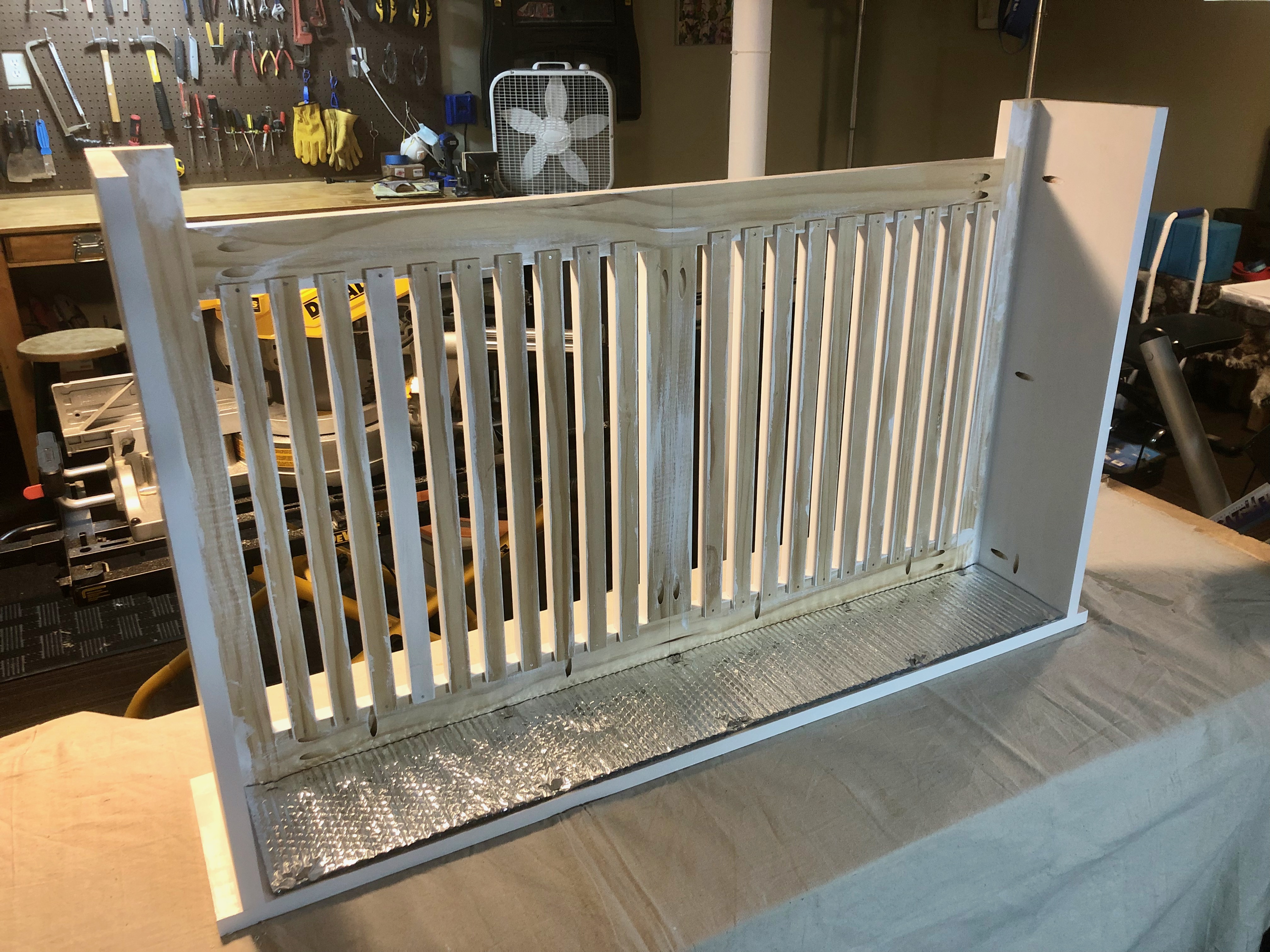

I just designed and built another radiator cover. This is to fit over a small steam radiator that is in a bathroom. It just needs to be primed and painted. Underneath the top, there is heat-reflective material which will prevent the top surface from getting hot. This cover is like the three that I built while living in New York. I use Autodesk’s Fusion 360 CAD program to design the covers. A parametric modeling program makes it easy to copy and adjust the designs to suit the different radiator sizes.
